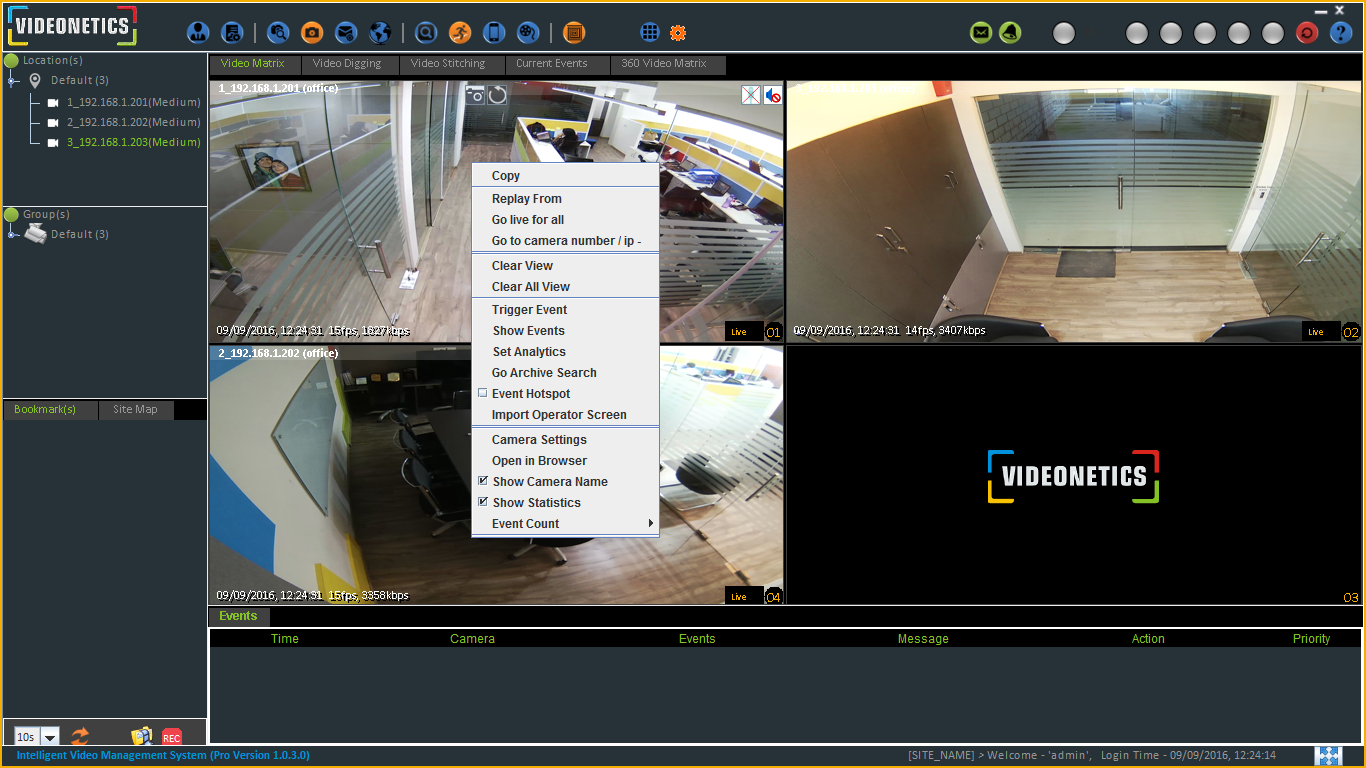

Once the live view loads, do a right click on the live video
The following list will appear on your live view screen :

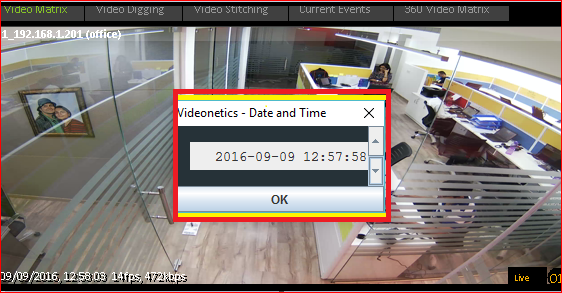

REPLAY FROM : This option will provide you replay video feature from your customized duration. To configure please right click on the video tile and select "REPLAY FROM". A Date-Time selection box will appear for you to select the particular instance you want the video to be replayed from. Set date and time and click the OK button.
From Date-Time selection box you can select date and time and then press OK.
COPY/PASTE TIME : To watch the video replay in one or more cameras from the same time, you should first right click on the video tile you are watching, and select copy time, and then go to the other video tile or tiles you want to sync the replay time, and again right click on those tiles and select paste time. You will find that the entire video replay will start from same time.
GO TO CAMERA NUMBER : Each camera is identified with a unique number to be assigned by the user. You can jump to the live view of any camera by just entering the camera number.
GO LIVE FOR ALL : Click on this option if you want to change camera views of all the video tiles to live view mode.
CLEAR VIEW : To free the view port from displaying any video.
CLEAR ALL VIEW : To free ALL the view ports from displaying any video.
SYNC REPLAY : All the video recording display will start from the same time once you select SYNC REPLAY option.

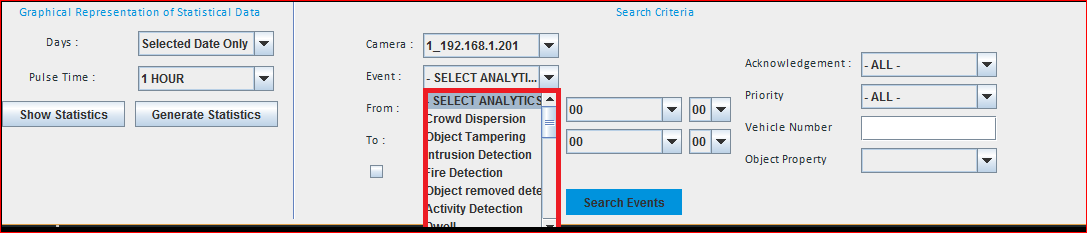

SHOW EVENT : Choose this action if you want to see the analytics events for this particular camera.

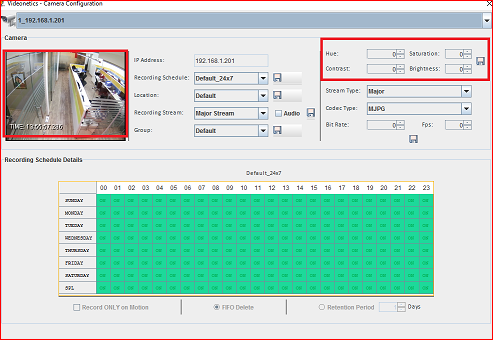

CAMERA SETTINGS : To set various parameters related to this camera, including recording schedule, location/group of the camera, camera fps, bit rate, saturation.
LEAVE ZOOMED VIEW : You select this option to get back to the original viewing mode while you are in the digital zoom mode.

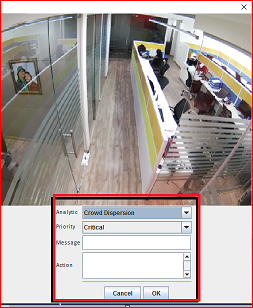

TRIGGER EVENT : You can also trigger an event by your own.
1. Right click on the camera view file.
2. you will find the trigger event option.
3. A following window in below figure will appear.
4. Fill all the details and press OK.
SHOW STATISTICS : The detail information about the camera will be displayed on the camera tiles superimposed on the video. It will show camera IP-address, current time-stamp, fps.
INTELLIGENT ZOOMING FEATURE : Drag the mouse on any part of the video tile for zooming. Zoomed view of that particular area will be displayed on the same panel. Based on the degree of Zoom, the system automatically selects the proper camera stream profile to deliver the clear image. to return from the zoomed mode just right-click on the video-tile and go with "LEAVED ZOOMED VIDEO" option.

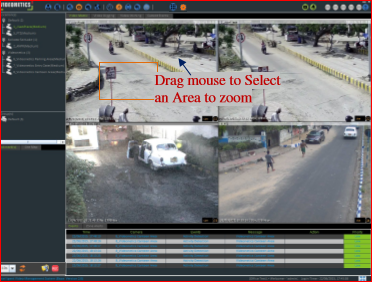

DRAG MOUSE TO SELECT AN AREA TO ZOOM:

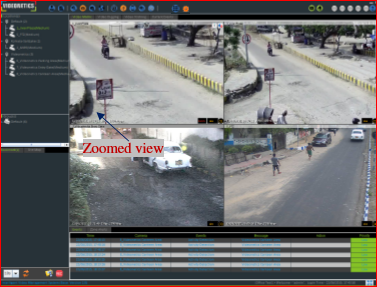

ZOOMED VIEW:
