Edge Server serves the purpose, if the camera communication breaks with the VMS software, then the recording continue to happen on the SD card installed on the unit itself.

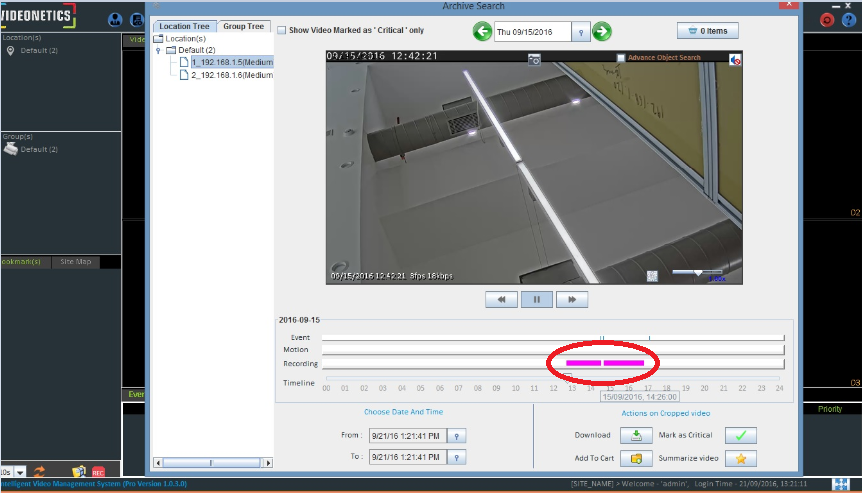

You will see the gap in recording when an Archive Search windows opens for that particular camera unit.
In the above snapshot captured will display a gap which confirms that recording did not happened due to some reasons which need to be investigated. Since, the camera has a SD card installed the recording will continue to happened. Once the connection established the recording from the SD card will be moved to the server.
Now when camera connection get established then, SD card shares the same recording with the MediaServer marked in GREEN
And if SD card does not send the recording to the media server then must follow below steps:

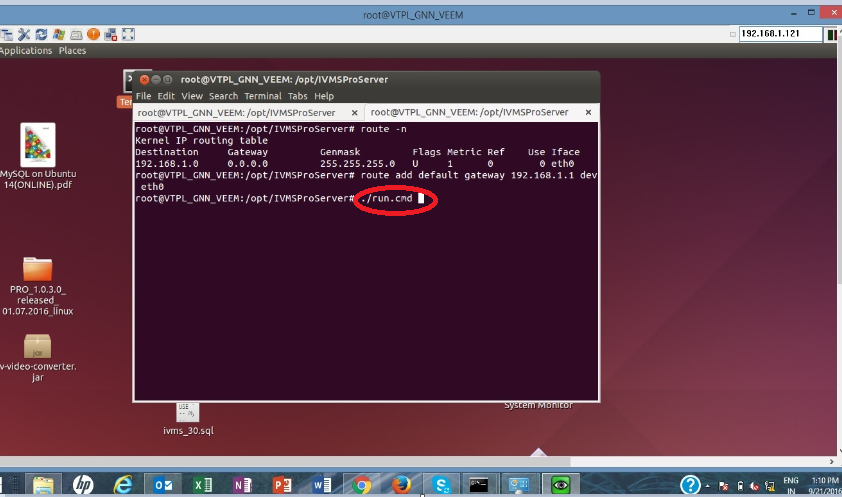

STEP 1: Open the Terminal and type ./run.cmd

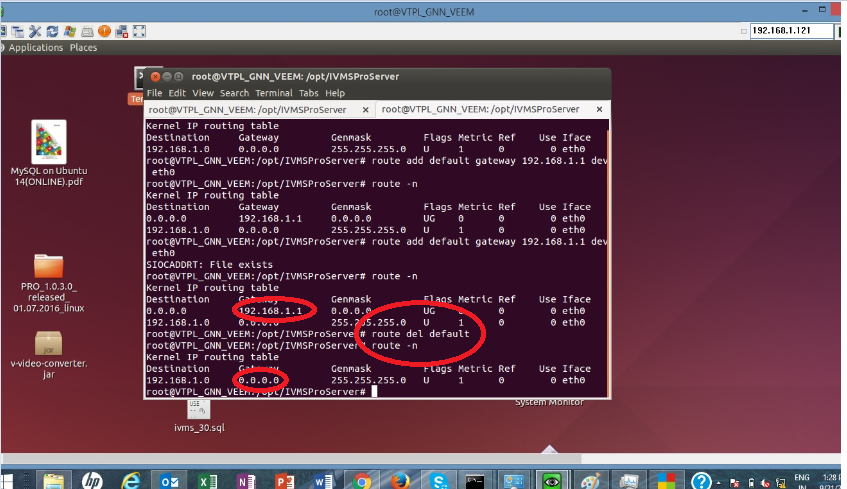

STEP 2: After executing ./run.cmd, type route del default and route -n to delete the gateway IP and execute it.
After executing we can see earlier the gateway IP is 192.168.1.1 and after the executing following marked commands, gateway IP will be 0.0.0.0 and after this SD card starts sending recording to media server as shown in below image:

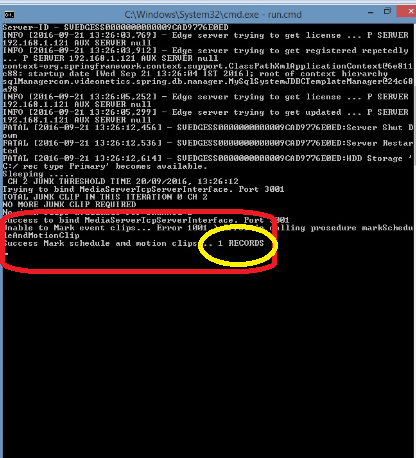

It shows that 1 record successfully transferred to the media server.
Please reach out to support@videonetics.com for any queries.
